Tag Archives: Windows

Tiny tip of the day – ten more Windows shortcuts

Leave a reply

My last tiny tip post (Ctrl+Shift+Esc takes you directly to Task Manager) seemed quite popular so here’s another one.

This post includes ten more keystrokes that I use to save me time with CAD management, development, documentation and support. All of these use the Windows key, which is located between Ctrl and Alt on most keyboards.

These keystrokes apply to Windows 10 but most of them also work with earlier releases.

Keystroke Action
Win + D Show the desktop (minimize all windows). It’s a toggle, so use it again to put them back how they were. (Win + M also minimizes all windows and Win + Shift + M restores but I find Win + D easier to remember).
Win + E Start an Explorer window.
Win + Plus (+) Magnify (pixel fattener). You can magnify the screen more in steps by repeating Win + Plus. Win + Minus (-) reverses one level of magnification. Win + Esc exits magnification mode.
Win + number Same as picking the <number> item on the taskbar. For example, if you have pinned Notepad to the taskbar and it’s in the 5th position, Win + 5 will start a Notepad session. Win + 5 again will minimize Notepad. Win + 5 again will restore Notepad.
Win + Shift + number As above but always starts a new instance of the application. For example, if you have Notepad running already but want to force a new instance, you can use Win + Shift + 5.
Win + Ctrl + Shift + number As above but runs the instance as an administrator.
Win + Shift + Left or Right Move the current application to the left or right side of the screen. This is particularly handy for CAD people with dual monitors and apps that typically use up a full screen.
Win + I (letter i) Settings (newer version of Control Panel).
Win + Pause System status – very handy when you’re looking at a problem on somebody else’s computer.

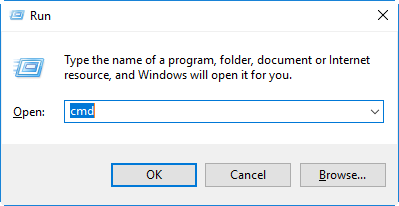

Win + R Run a OS command.

Bonus tip: Win + L will lock the computer for when you leave your desk (thanks Robin Capper). You can also use it to switch accounts.

There is a full list of Windows keystrokes on the Microsoft site.

Tiny tip of the day – go directly to Task Manager

3 Replies

Windows software (e.g AutoCAD) taking way too long to perform a certain operation? Apparently stuck in an endless loop? Won’t stop even when you hit Esc? Need to end the task so you can try something else instead? Not even hitting the red X in the corner works? Then you might find this tiny tip handy.

Ctrl+Shift+Esc takes you directly to Task Manager.

Do not hit Ctrl+Alt+Del. Do not pass Go. Do not collect $200. Enjoy!

Automated .NET 4.7 update kills AutoCAD pre 2017

7 Replies

Thanks to Robert Green for pointing this out:

Microsoft is installing .NET 4.7 as part of their auto updates and it is causing many legacy Autodesk applications to crash on any ribbon interaction. Touch the ribbon, away goes your software.

If you can keep from installing the 4.7 framework do so. If the damage is already done then uninstall .NET 4.7 and install .NET 4.6.2 using this download link. Note that the uninstall of the offending version must be done first!

AutoCAD 2013 to 2016 and Inventor are affected, and possibly other products. BricsCAD users are unaffected.

It is also reported that you can work around the problem by hacking the registry to identify an earlier .NET version as being installed (the usual caveats apply). That’s described in this Autodesk Knowledgebase article that works around a related but slightly different issue.

Don’t you just love the way continuous automated updates enhance and enrich the user experience?

Microsoft demonstrates why automatic updates are a terrible idea. Listening, Autodesk?

1 Reply

I like Windows 10. After some investigation and with some trepidation, I have upgraded two Windows 7 computers and one Windows 8 (ugh) computer to Windows 10. In use, I’m generally very happy with it. It boots fast, works well and most of the more ridiculous aspects of the Windows 8 “let’s assume your computer is a phone” interface are gone. The fact that I can scroll windows using my mouse wheel without first clicking on those windows to obtain focus is a real productivity plus. I would be happy to recommend Windows 10 to all Windows 8 users and most Windows 7 users, dependant on individual needs. I would, but I’m not. Microsoft is entirely responsible for that reluctance; read on.

The one thing I really, really dislike about Windows is the way it pushes updates. With Windows 7 I was always selective about what updates I allowed through and when they were applied. Windows 10 doesn’t give you that choice. It downloads and applies its updates as it sees fit, regardless of the importance of those updates, my bandwidth and the level of inconvenience applying those updates might cause. Windows 10 Professional only allows you to defer updates until the next restart, and will nag you to restart until you give in.

This is bad enough, but the Home version just takes over your computer and updates and restarts whenever it feels like it. Yes, even if you are in the middle of doing something and have unsaved work, and the update process leaves your computer unusable for two hours. I wouldn’t have believed it if it hadn’t happened to a very computer-smart member of my own family. Quite astonishing levels of malicious arrogance from the utter wankers at Microsoft.

I know there can be some very important reasons for keeping your OS up to date, particularly as far as urgent security patches are concerned. But really, given the choice between a tiny chance of some unknown malicious action by some unknown party (that hasn’t yet happened to any computer I’ve been running in over 30 years) and a 100% chance of known multiple malicious actions by Microsoft, which would you pick? Problem is, I made my choice on those three computers a few months ago and now I’m stuck with it.

Microsoft’s arrogance has triggered a minor in-house rebellion; two of my other former Windows computers are now happily running Linux. Five years ago, 100% of the computers in my household were running Windows. Now the figure is 43%, and I’m not even counting handheld devices (that would make it 20%). I haven’t bought a new version of Office in many years. Yes, I know, Microsoft isn’t exactly quaking in its boots, but it makes me feel better to raise the digit in this way.

Various other people are holding back on Windows 10 for this and other reasons, despite the insistent placement of update icons and nag notices. Some of those nag notices have made the news for all the wrong reasons. Last month, many people found themselves updated to Windows 10 without their explicit consent and against their will because Microsoft changed the status of the Windows 10 update for Windows 7/8 users and employed other sneaky tricks.

To Microsoft: that’s a really, really abhorrent low-life scumbag way to behave. These are our computers, not yours. We’re the customers (the ones providing the money) and you’re just vendors (the ones who want our money). Get back in your box and stop behaving like dickheads. Your assholery has been a significant factor in your decline. Give it up, it’s bad for you.

If you’re a Windows 7 or 8 user who wants to stay that way, please don’t disable updates altogether, because that could leave you vulnerable. Instead, I suggest you check out the free utility GWX Control Panel. If it’s too late and you’ve been updated, here’s what you can do. You have a limited amount of time to roll back.

Autodesk wants your software to be updated like this, continually and automatically. This is a bad idea for a whole range of reasons that go beyond why it’s a bad idea for Microsoft to do it. I hope to expand on those reasons later, but this post is long enough already. Trust me, it’s a terrible idea.

Although right now Autodesk is doing a heart-warmingly poor job of implementing this concept, eventually it might get the technical details right and be in a position to force it on you. Fight it tooth and nail. Make your voice heard wherever you can, online and in person. Uninstall, disable or block any software that attempts to do this. Look for any utilities, tips, etc. that stand between your software and automatic updates, and spread that news far and wide. This is an important battle for control over our own property, so please don’t give up.

Navel gazing note: this is the 500th post published on this blog.

How to make Ctrl+C perform a Cancel

2 Replies

In a recent comment, I was asked how to make Ctrl+C perform a Cancel. Before I get onto that, here’s a bit of history.

Back in the Dark Ages of DOS, the way to cancel a command was by holding down Ctrl and pressing C. The last release to work like this by default was Release 13 for DOS, released in 1994. I remember the bother it caused my users who were faced with the Windows version in which Esc was used to cancel things and Ctrl+C copied objects to the clipboard. It took me at least a year before I had totally removed Ctrl+C = Cancel from my muscle memory.

Until AutoCAD 2005, Autodesk provided an easy option to keep things the way they were by turning off the toggle Options > User Preferences > Windows standard accelerator keys. In recent AutoCAD releases, you have still been able to do it, but it’s a little more involved and uses the CUI command. Here’s how:

  • Enter the CUI command.
  • In the top left pane, burrow down to Keyboard Shortcuts > Shortcut Keys.
  • In the bottom left pane, scroll down to find the Cancel item. Click and drag it onto Shortcut Keys in the top left pane. Because of a long-standing auto-scroll annoyance in the CUI interface, you will find this easier if you drag off to the right, then up, then left onto Shortcut Keys.

That adds Ctrl+C = Cancel to the set of shortcut keys AutoCAD understands, but it won’t work yet because it will clash with the Ctrl+C = CopyClip shortcut key that’s already in there. We need to get rid of that before we’re finished in CUI, or more usefully, assign it to a different key:

  • Find Copy Clip in the Shortcut Keys list in the top left pane and click on it.
  • In the bottom right pane, find Access > Key(s). Where it says CTRL+C, change that to something else of your liking (e.g. CTRL+ALT+C). If you pick the […] button, you will be able to record the keystroke sequence directly instead of typing it in and worrying about syntax.
  • Pick OK and you’re done.

This post may be directly useful to only a handful of people who are still holding out after all these years, but it also serves as an introduction to a more generally useful skill; setting up keyboard shortcuts in CUI.

AutoCAD tip – persuade Open to highlight your drawing

1 Reply

In AutoCAD, when you have a drawing open and you go to open another, does Open automatically scroll down and highlight your current drawing?

This can be very handy when you’re working your way though a set of drawings. If this isn’t happening for you, here’s how to make it do so.

In Explorer, go to Tools > Folder Options > View tab and turn off the toggle for Hide extensions for known file types. (Windows XP shown). This is the first thing many people do when setting up a new Windows system. If you fit into this category, you have probably never seen this problem yourself, but you may still be able to use this knowledge to help others.
